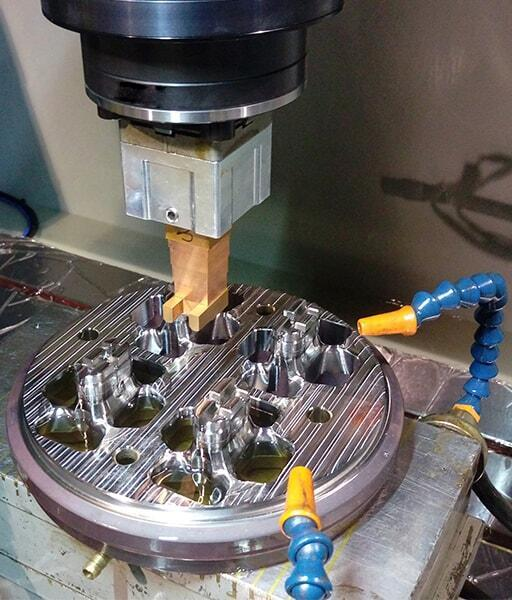

1. Mold and Tooling Manufacturing

One of the most common applications of EDM is mold and tooling production.

Plastic injection molds and die-casting molds often require complex cavities, sharp corners, deep ribs, and fine details that are difficult to achieve with traditional machining.

EDM provides excellent solutions for:

• Deep cavity machining
• Precision mold inserts
• Slider and lifter components
• Fine texture machining
• Complex internal structures

With EDM, manufacturers can achieve highly accurate mold components while maintaining excellent surface quality and dimensional stability.

2. Aerospace and High-Precision Components

The aerospace industry requires components with strict tolerances and excellent material performance.

Many aerospace materials, such as titanium alloys and heat-resistant alloys, are difficult to machine using conventional cutting tools. EDM allows manufacturers to process these challenging materials while maintaining precision.

Typical aerospace EDM applications include:

• Turbine components
• Precision brackets
• Engine parts
• Complex structural components
• Small precision features

The ability to machine hard materials without creating excessive cutting forces makes EDM an ideal process for aerospace manufacturing.

3. Automotive Performance Parts

In the automotive industry, precision and reliability are critical. EDM is widely used for manufacturing high-performance automotive components and tooling.

Common applications include:

• Engine components
• Transmission parts
• Racing components
• Precision fixtures
• Injection mold tooling
• Prototype automotive parts

For automotive manufacturers requiring complex designs and tight tolerances, EDM provides consistent quality and repeatable results.

4. Medical Device Manufacturing

Medical components often require extremely high precision and complex geometries.

EDM is commonly used for producing:

• Surgical instruments
• Medical implants
• Micro components
• Precision tooling
• Small stainless steel parts

Because EDM can process very small features with minimal mechanical stress, it is especially suitable for medical applications where accuracy and reliability are essential.

5. Micro Machining and Complex Small Parts

As industries continue to develop smaller and more sophisticated products, micro machining has become increasingly important.

EDM enables manufacturers to produce:

• Tiny holes
• Narrow slots
• Fine grooves
• Complex contours
• Small precision components

This makes EDM valuable in industries such as electronics, sensors, robotics, and precision instruments.

6. Wire EDM for Precision Cutting

Wire EDM is another important EDM technology that uses a thin electrically charged wire to cut materials with high accuracy.

Wire EDM is widely used for:

• Precision profiles
• Complex shapes
• Thin components
• Prototype parts
• Tooling components

Advantages of Wire EDM include:

• Extremely high dimensional accuracy
• Excellent edge quality
• Ability to cut hardened materials
• No cutting tool wear

It is an ideal solution for parts requiring complicated 2D profiles and tight tolerances.
